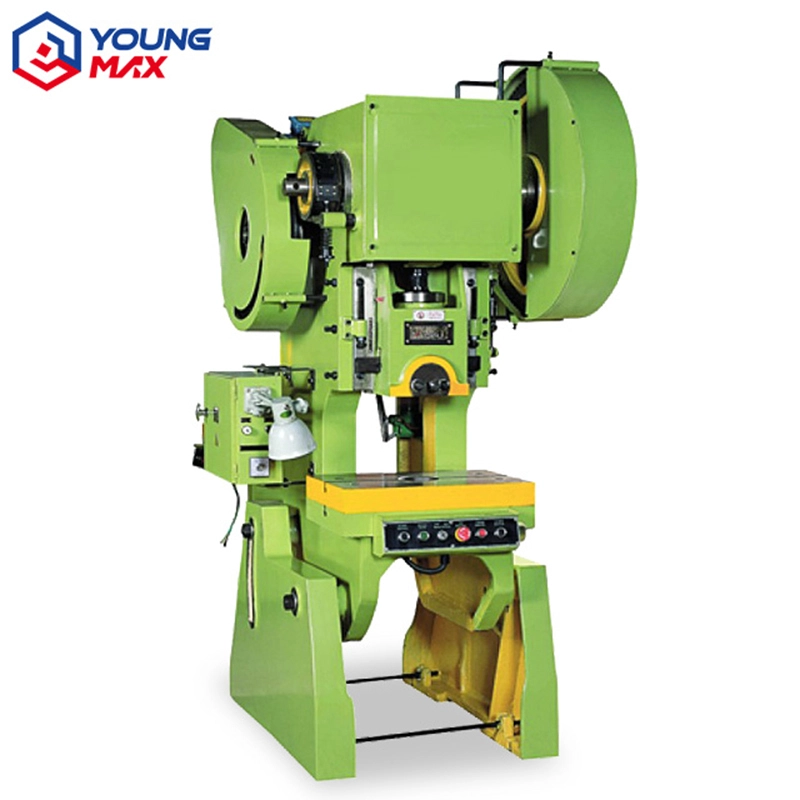

Punch stamping metal power press high speed press machine
Size: 250*400mm
Place of Origin: China
Minimum order quantity: 1pcs
Color: Customized
Packing: Fixed machine in full container
Delivery time: 25-35days
Model: YM-J23L-16A
Transaction mode: By sea
PRODUCT FEATURES
1.J-serial open-style series is the international general type open press with fixed bed.
2.The machine adopt bevel gear drive,stable and has small impact,low noise,clutch USES rigid double turn key clutch,high accuracy flexible operation,easy maintenance use and reliable.
3.Widely used in automobiles,tractors,motors,electrical appliances,bearings,instruments and meters,medical instruments,daily hardware and other industries
APPLICATIONS
For blanking,punching,beading,shallow drawing,trimming,forming,such as cold stamping process.
Product specification
|
DESCRIPTION |
UNIT |
YM-J23L-16A |
YM-J23-25 |
YM-J21L-45D |
YM-J21--63A |
YM-J21-80A |
|
Nominal force |
kN |
160 |
250 |
450 |
630 |
800 |
|
Slide stroke |
mm |
70 |
60 |
220 |
250 |
250 |
|
Nominal force stroke |
mm |
2.3 |
2.8 |
4 |
5.5 |
6 |
|
Stroke per minute |
min |
120 |
120 |
40 |
40 |
30 |
|
Closed height |
mm |
200 |
200 |
330 |
400 |
480 |
|
Distance between slide center to worktable |
mm |
130 |
160 |
240 |
270 |
300 |
|
Mould installation hole size(dia/depth) |
mm |
φ30x50 |
φ40x50 |
φ50x80 |
φ50x80 |
φ60x80 |
|
Worktable size |
mm |
250X400 |
300X500 |
460x800 |
520x900 |
570x1000 |
|
Motor power |
kw |
1.1 |
1.5 |
4 |
5.5 |
7.5 |
|
Net weight |
kg |
850 |
1030 |
3800 |
5300 |
7500 |
