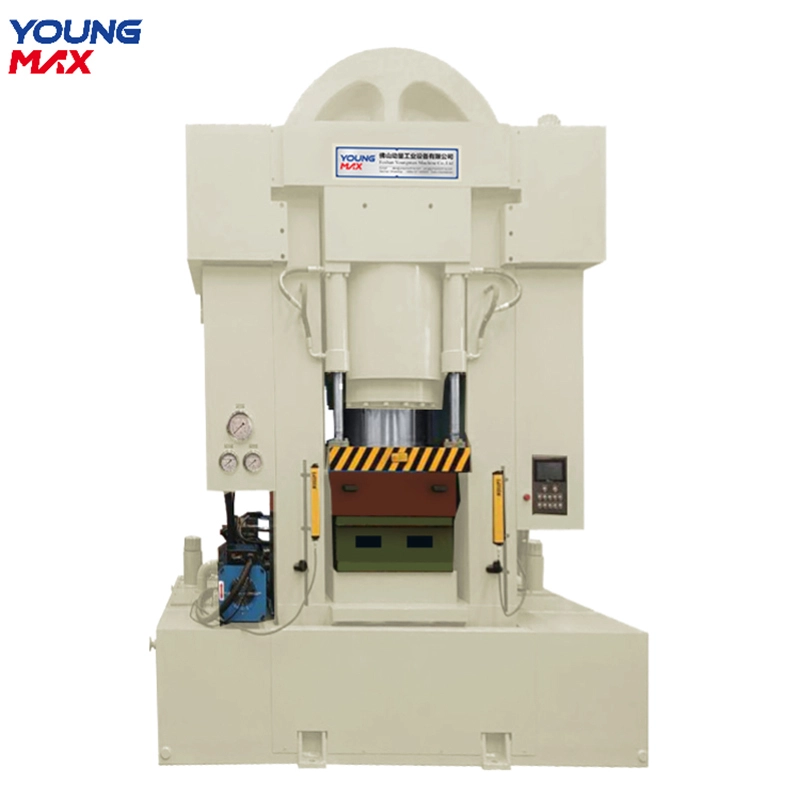

Cast iron cookware 2000ton heavy hydraulic press machine 1

Cast iron cookware 2000ton heavy hydraulic press machine 2

Cast iron cookware 2000ton heavy hydraulic press machine 3

Cast iron cookware 2000ton heavy hydraulic press machine 4

Cast iron cookware 2000ton heavy hydraulic press machine 5

Cast iron cookware 2000ton heavy hydraulic press machine

Heavy duty hydraulic press machine is a powerful industrial tool designed to generate a compressive force using hydraulic pressure. These machines are commonly used in manufacturing, metalworking, and various industrial applications for tasks such as metal forming, forging, stamping, and molding. We have 2000ton/2500ton/3000ton/3500ton/4000ton/5000ton version.

Size: 750*550mm

Place of Origin: China

Minimum order quantity: 1pcs

Color: Customized

Packing: Fixed machine in full container

Delivery time: 25-35days

Model: YM-YRK-2000S

Transaction mode: By sea

Inquiry

Write a Review

PRODUCT FEATURES

1. Pre-stressing steel wire winding structure is adopted,Under ultra-high pressure working conditions,the oil cylinder has high life,good anti-fatigue performance,no risk of frame fracture or cylinder burst,and good safety

2. Adopt fast flushing,fast pressure relief technology,large flow pressure boosting technology,high working efficiency

3. The maximum working pressure of the main cylinder shall not exceed 80MPA. Considering the stability and sealing performance of components under ultra-high pressure,it has good stability and reliability in long-term use and high comprehensive cost performance

4. Servo motor pump control system,accurate pressure control,low energy consumption,low noise

5. Different parts of the pressed product can be of different thickness

6. Compound bottom process can expand the product range

APPLICATIONS

High forming pressure,used for stainless steel,titanium plate and other metal plate high precision pressing molding process. It is mainly suitable for plate heat exchanger sheet pressing,high grade door embossing molding,thick wall stainless steel material cutting and drawing,Aluminum stretching,extrusion,pressing molding,bending and punching electronic parts,and jewelry,door lock,large sheet.

Product specification

DESCRIPTION		UNT	YM-YRK-2000S	YM-YRK-2500S	YM-YRK-3000S	YM-YRK-3500S		YM-YRK-4000S			YM-YRK-5000S
Type of oil pump			Single	Single	Double	Single	Double	Single	Double	Single		Double
Main cylinder nominal force		KN	20000	25000	30000	35000		40000			50000
The maximum working pressure of the main oil cylinder		Mpa	80	80	80	80		80			80
Max travel of movable beam		mm	250	300	300	300		350			350
Nominal force of return cylinder		KN	120	120	120	120		120			150
Return cylinder stroke		mm	50	50	50	50		50			70
Closed height	Max	mm	750	800	850	900		950			1100
	Min	mm	500	500	550	600		600			750
Active beam filing speed	Fast down	mm/s	260	260	260	240		260			260
	Work in	mm/s	12	12	10/17	18	18/30	16	16/25	19	13/21
	Fast return	mm/s	260	260	260	240		260			260
Table height above ground		mm	About 840	About 900	About 970	About 1025		About 1055			About 1200
Servo motor power		KW	49	60.3	72	132	160	132	160	204		180
Cooling motor		KW	4	4	4	4		4			4
Table thickness		mm	About 180	About 180	About 180	About 180		About 180			About 200
Effective area of worktable (left and right x front and rear)		mm	750x550	800x620	850x670	900x720		950x780			1000x870
