Youngmax 2000ton 2500ton 3000ton 3500ton 4000ton 5000ton heavy duty hydraulic press machine
● Heavy duty hydraulic press machine is a powerful industrial tool designed to generate a compressive force using hydraulic pressure.
● It is commonly used in manufacturing and metalworking for tasks such as metal forming, forging, stamping, and molding. The machine is available in different types, including frame heavy duty, cylinder heavy duty, and cookware heavy duty hydraulic press machines.
●The heavy duty hydraulic press machine is specifically designed for applications in cookware production, making it a valuable tool for businesses in the cookware manufacturing industry.
PRODUCT FEATURES
1. Good rigidity, high precision, compact structure, economical and applicable
2. The hydraulic control adopts a cartridge valve integrated system, which has fewer leakage points, small impact, and reliable action, which can effectively protect the service life of the mold and equipment
3. Customized cylinder sealing components with strong reliability and long service life
PRODUCT ADVANTAGE

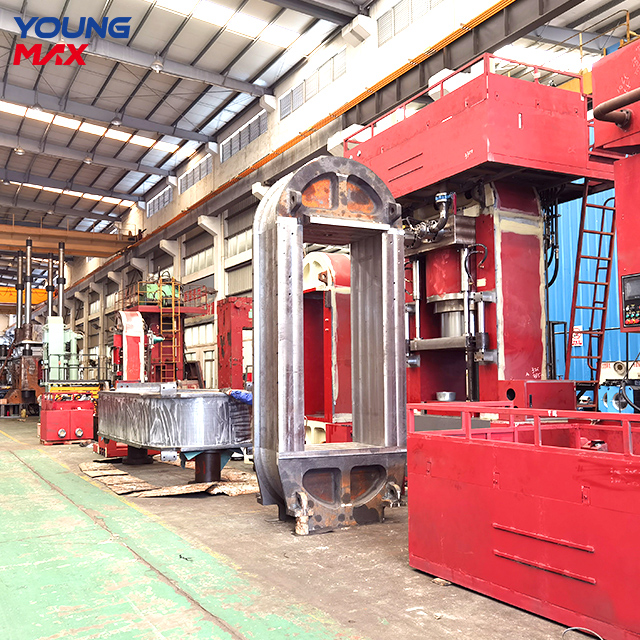

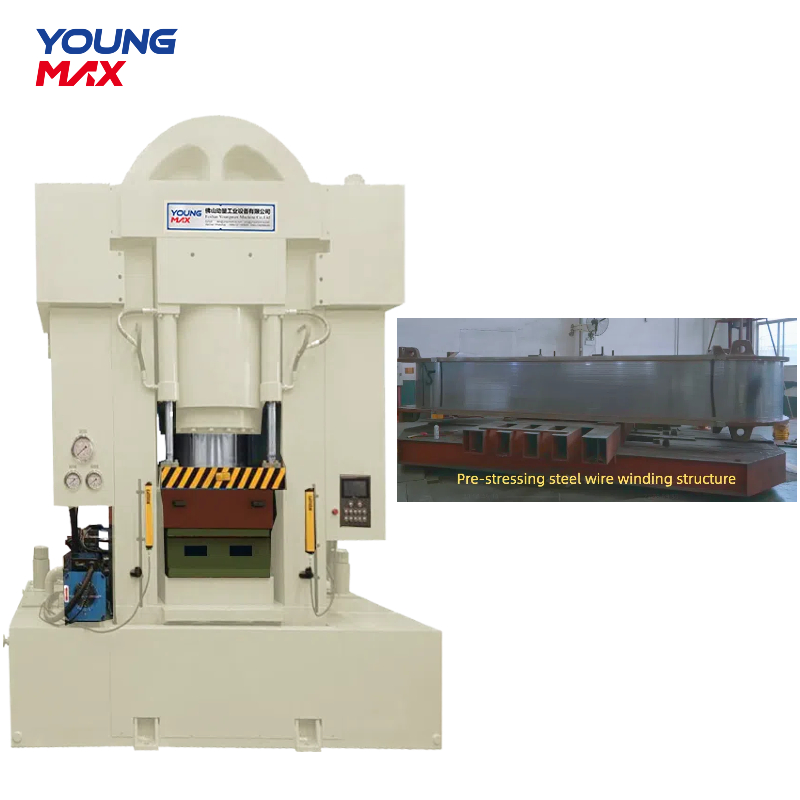

1. Pre-stressing steel wire winding structure is adopted. Under ultra-high pressure working conditions, the oil cylinder has high life, good anti-fatigue performance, no risk of frame fracture or cylinder burst, and good safety
2. Adopt fast flushing, fast pressure relief technology, large flow pressure boosting technology, high working efficiency
3. The maximum working pressure of the main cylinder shall not exceed 80MPA. Considering the stability and sealing performance of components under ultra-high pressure, it has good stability and reliability in long-term use and high comprehensive cost performance
4. Servo motor pump control system,accurate pressure control, low energy consumption, low noise
5. Different parts of the pressed product can be of different thickness
6. Compound bottom process can expand the product range
APPLICATIONS
High forming pressure, used for stainless steel, titanium plate and other metal plate high precision pressing molding process. It is mainly suitable for plate heat exchanger sheet pressing, high grade door embossing molding, thick wall stainless steel material cutting and drawing, Aluminum stretching, extrusion, pressing molding, bending and punching electronic parts, and jewelry, door lock, large sheet, etc.
Product specification
|
DESCRIPTION |
UNIT |
YM-YRK-2000S |
YM-YRK-2500S |
YM-YRK-3000S |
YM-YRK-3500S |
YM-YRK-4000S |
YM-YRK-5000S |
||||||
|
Type of oil pump |
|
Single |
Single |
Double |
Single |
Double |
Single |
Double |
Single |
Double |
|||
|
Main cylinder nominal force |
KN |
20000 |
25000 |
30000 |
35000 |
40000 |
50000 |
||||||
|
The maximum working pressure of the main oil cylinder |
Mpa |
80 |
80 |
80 |
80 |
80 |
80 |
||||||
|
Max travel of movable beam |
mm |
250 |
300 |
300 |
300 |
350 |
350 |
||||||
|
Nominal force of return cylinder |
KN |
120 |
120 |
120 |
120 |
120 |
150 |
||||||
|
Return cylinder stroke |
|
mm |
50 |
50 |
50 |
50 |
50 |
70 |
|||||
|
Closed height |
Max |
mm |
750 |
800 |
850 |
900 |
950 |
1100 |
|||||
|
Min |
mm |
500 |
500 |
550 |
600 |
600 |
750 |
||||||
|
Active beam filing speed |
Fast down |
mm/s |
260 |
260 |
260 |
240 |
260 |
260 |
|||||
|
Work in |
mm/s |
12 |
12 |
10/17 |
18 |
18/30 |
16 |
16/25 |
19 |
13/21 |
|||
|
Fast return |
mm/s |
260 |
260 |
260 |
240 |
260 |
260 |
||||||
|
Table height above ground |
mm |
About 840 |
About 900 |
About 970 |
About 1025 |
About 1055 |
About 1200 |
||||||
|
Servo motor power |
KW |
49 |
60.3 |
72 |
132 |
160 |
132 |
160 |
204 |
180 |
|||
|
Cooling motor |
KW |
4 |
4 |
4 |
4 |
4 |
4 |
||||||
|
Table thickness |
mm |
About 180 |
About 180 |
About 180 |
About 180 |
About 180 |
About 200 |
||||||
|
Effective area of worktable (left and right x front and rear) |
mm |
750x550 |
800x620 |
850x670 |
900x720 |
950x780 |
1000x870 |
||||||
