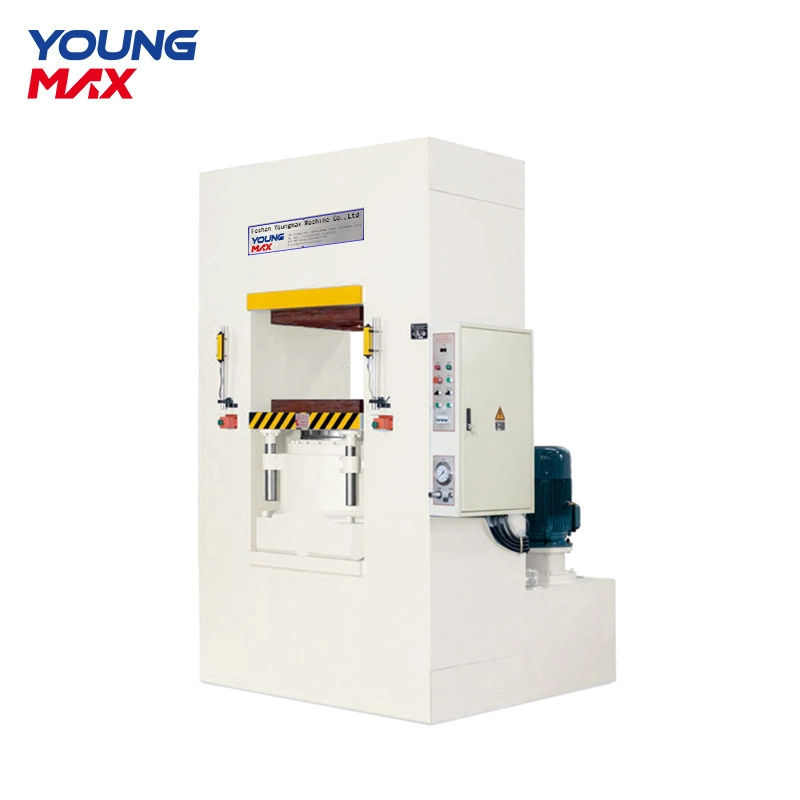

Youngmax 300/500/1000/1500/2000ton H frame type hydraulic press machine
● The frame type hydraulic press machine adopts an overall frame or combined frame structure welded by all-steel plates.
● This design makes the hydraulic press have extremely high load-bearing capacity and impact resistance.
● The four-corner and eight-sided right-angle guide rail guide has high precision and good rigidity, and adopts hydraulic preloading to ensure that it can still remain stable when withstanding large-tonnage pressure, thereby ensuring processing accuracy and product quality.
● Frame type hydraulic pressing machine is popular in producing different models of commemorative coins.
PRODUCT FEATURES
1. H frame hydraulic press machine adopts advanced welding technology and has a large space for up and down movement, which is convenient for suppressing workpieces.
2. It can preset the working pressure, and can be equipped with electronic digital tonnage display and hydraulic system heat dissipation device.
3. Independent movable pumping station, return hydraulically controlled unloading, optional protective net.
PRODUCT ADVANTAGE
1. The electrical control is changed to a microcomputer single-chip microcomputer.
2. The advantages of this system are 24V safe control voltage,no intermediate relay.
3. The whole computer chip has high stability,long service life and simple operation.
APPLICATIONS
1. Metal, gold ornaments, glasses, grinding wheels, electrical appliances, embossing, laminating, metal plates, watch straps(shells, bottoms), plastic rubber and other industrial products are used for molding.
2. In addition,according to customer requirements,we can produce pressure-holding and material-returning device series hydraulic presses, which are suitable for heating, shaping and automatic stripping of processed products in industries such as grinding wheels, watch cases, metal signs, and plastic rubber, gas device automatic vulcanizing machine.
Product specification
|
DESCRIPTION |
UNIT |
YM-YB-300A |
YM-YB-500A |
YM-YB-1000A |
YM-YB-1500A |
YM-YB-2000A |
|
|
Nominal force of main cylinder |
KN |
3000 |
5000 |
10000 |
15000 |
20000 |
|
|
Max hydraulic working pressure of main cylinder |
Mpa |
24 |
25 |
25 |
38 |
40 |
|
|
Return nominal force |
KN |
50 |
70 |
100 |
100 |
200 |
|
|
Max distance of movable crossbeam |
mm |
160 |
160 |
150 |
160 |
220 |
|
|
Distance between |
Max |
mm |
400 |
420 |
500 |
550 |
740 |
|
Min |
mm |
240 |
260 |
350 |
390 |
490 |
|
|
|
No-load downward |
mm/s |
90 |
145 |
100 |
135 |
115 |
|
Under pressure |
mm/s |
5.5 |
4.5 |
2 |
0.17/3.4 |
0.18/3.6 |
|
|
Return |
mm/s |
95 |
145 |
85 |
115 |
80 |
|
|
Motor power |
KW |
7.5 |
11 |
22 |
30/22 |
37/2.2 |
|
|
Area of worktable Left/Right x Front/Back |
mm² |
596X580 |
696X700 |
860X900 |
950X950 |
1080X1080 |
|
