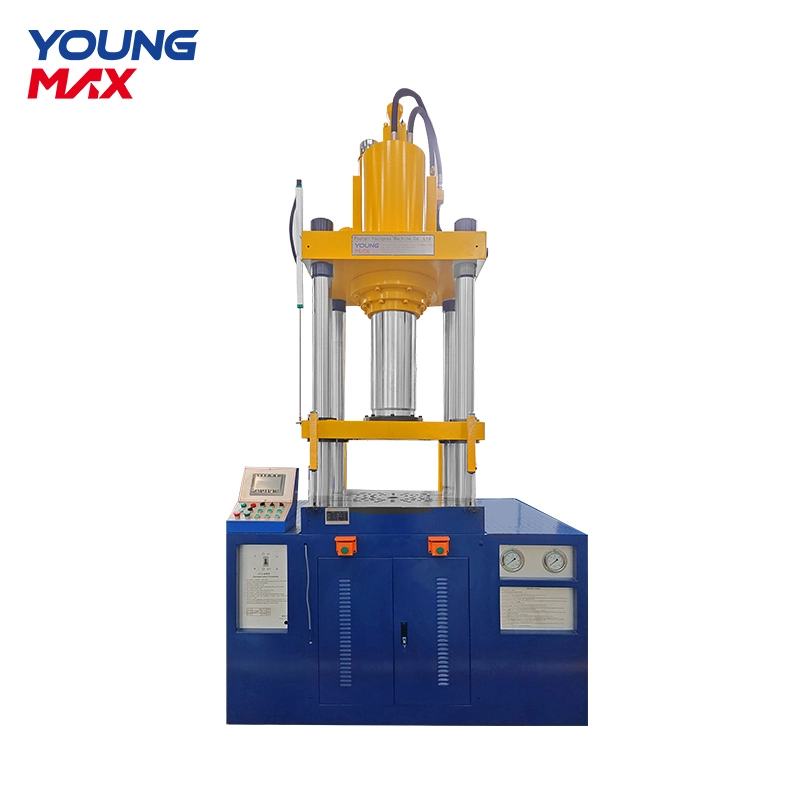

Cookware forming Machine four column servo 200 ton hydraulic press

200 ton hydraulic press uses a servo motor to drive the main transmission oil pump, which is precisely controlled by a servo controller and sensors.

● Compared with traditional hydraulic presses, 200 ton hydraulic press have higher control accuracy, stability, response speed and production efficiency, and are suitable for high-end processing and precision molding fields.

 200 ton hydraulic press uses a servo motor to drive the main transmission oil pump, which is precisely controlled by a servo controller and sensors.

    oops...!

    no product data.

    Go to homepage

    PRODUCT FEATURES


    1. High speed and high efficiency

    2. The frame is optimized with small deformation,good rigidity,uniform stress and high forming precision

    3. The servo motor drive system can effectively meet the requirements of different processes on the change of speed and pressure,and the movement is more stable and quiet

    4. Stable running speed,stable pressure

    详情1 (2)
    详情2 (3)

    PRODUCT ADVANTAGE


    1. Servo hydraulic press,using advanced servo drive oil pump system,compared with the traditional hydraulic press,can save 30%energy

    2. The repeated precision of the servo hydraulic press can reach±0.01,which can effectively control the waste products caused by the accuracy problem of the machine

    3. Hydraulic press can effectively provide running speed through servo drive,and the production efficiency is about 35% higher than that of conventional motor CNC hydraulic press

    APPLICATIONS

    This series greatly improve the machine speed,is specially designed for aluminum cookware production line, especially design for the high capacity production of kitchen utensils and appliances industry. Suitable for various types of automatic production line,manipulator matching,to achieve high efficiency and safety,further improve the production efficiency of customers.

    成品 (3)

    Product specification

    DESCRIPTION

    UNIT

    YM-YX32-75SE

    YM-YX32-100SE

    YM-YX32-120SE

    YM-YX32-150SE

    YM-YX32-200SE

    YM-YX32-2508E

    YM-YX32-300SE

    YM-YX32-350SE

    Nominal force of main cylinder                     KN

    KN

    600

    650

    800

    1000

    1500

    1500

    2000

    2500

    Max hydraulic working pressure of main cylinder

    Mpa

    20

    20

    20

    20

    21

    21

    21

    20

    Return nominal force

    KN

    20

    50

    50

    110

    140

    140

    180

    125

    Max distance of movable crossbeam

    mm

    450

    500

    450

    560

    550

    550

    550

    600

    Max distance of return cylinder

    mm

    200

    200

    180

    220

    220

    220

    220

    220

    Distance between
    movable crossbeam
    to worktable

    Max

    mm

    700

    800

    750

    980

    950

    950

    1000

    1110

    Min

    mm

    250

    300

    300

    420

    400

    400

    450

    510


    Lifting speed of
    movable crossbeam

    Go down(adjustable

    mm/s

    300

    300

    350

    350

    380

    380

    340

    400

    Pressurize(adjustable)

    mm/s

    35

    30

    62

    41

    37

    37

    27/55

    21/42

    Return(adjustable)

    mm/s

    300

    280

    290

    350

    380

    380

    350

    400

    Motor power

    KW

    11

    15

    18

    31

    36

    36

    48

    36

    Area of worktable Left/Right x Front/Back

    mm

    520x580

    550X620

    650x750

    700x880

    700x880

    700X880

    750X900

    800x990

    Weigh

    T

    2.5

    3

    3.5

    5

    6.5

    7

    9

    10
