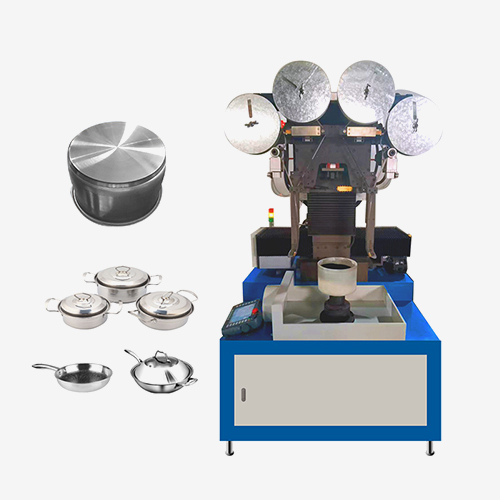

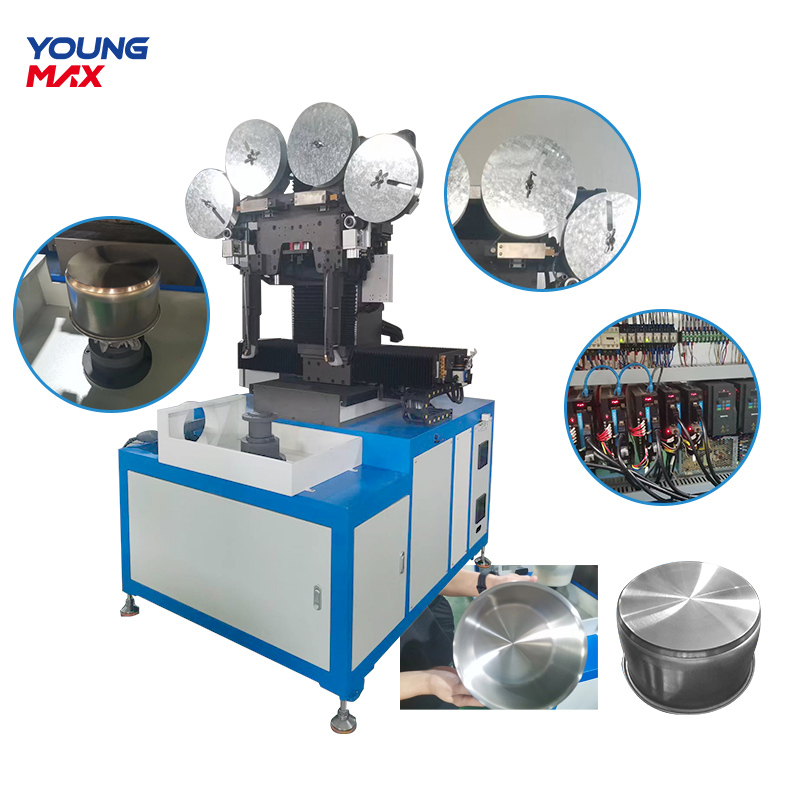

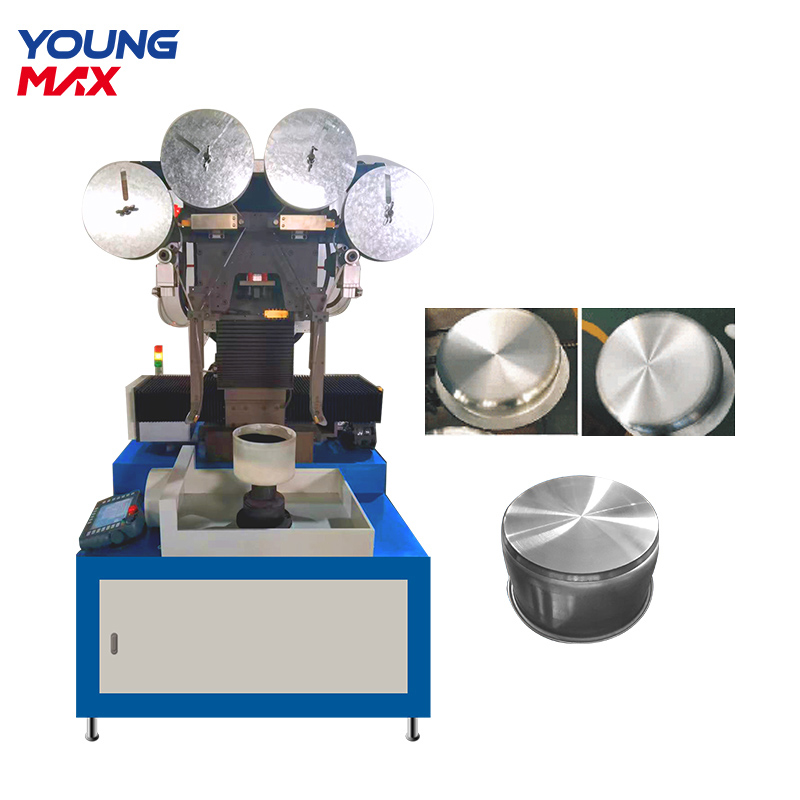

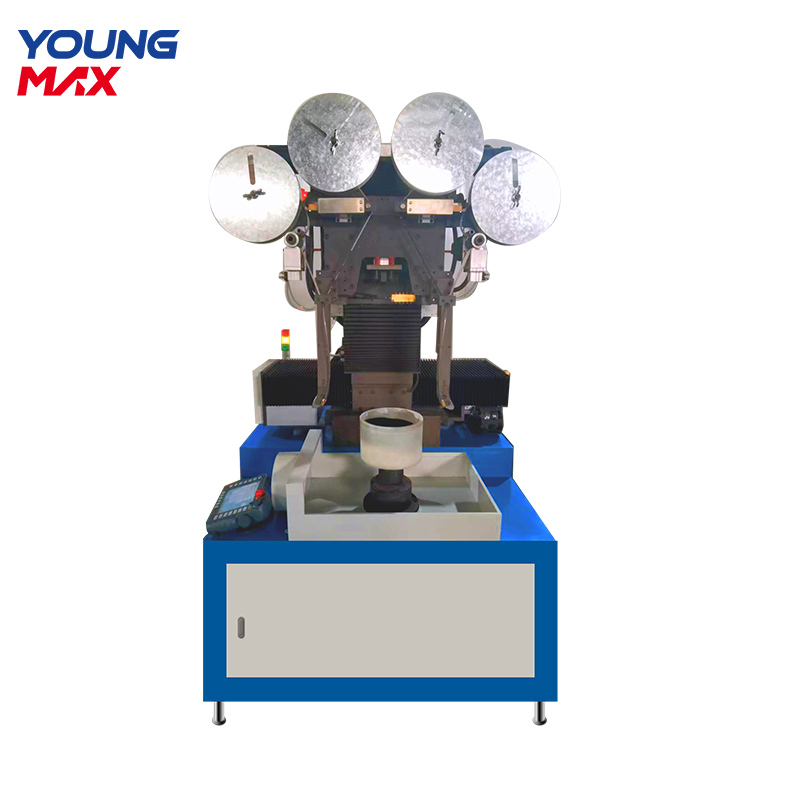

Youngmax auto cookware sand blasting machine

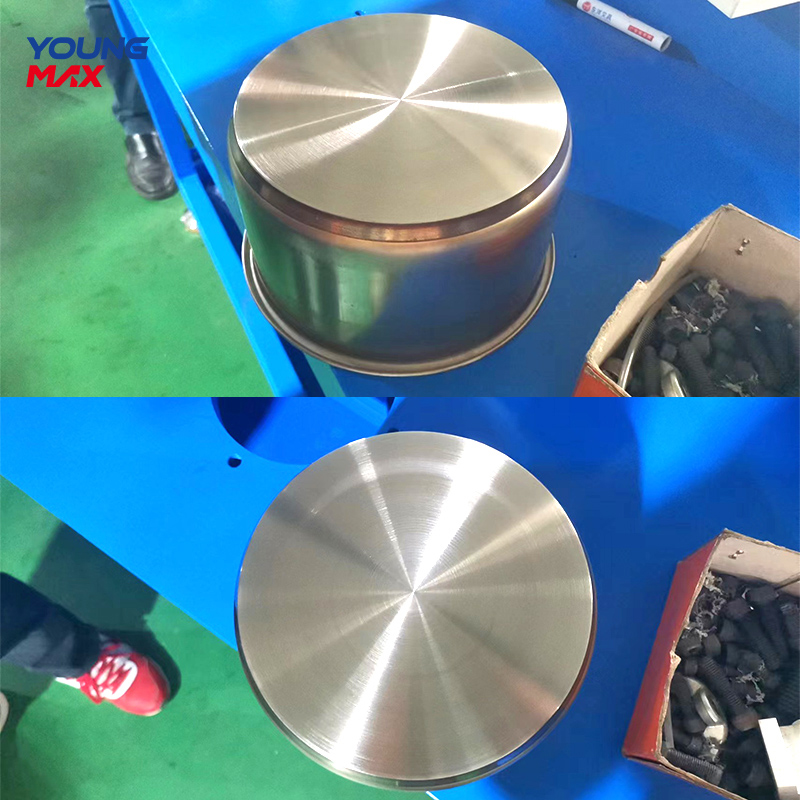

- Auto cookware sand blasting machine can be used for rough polishing, fine polishing and mirror polishing of all kinds of round-shape metal ware.
- Parameters such as polishing length, reciprocating range, polishing time etc.are etc.adjustable or can be set as automatic control.
- Convenient manipulation, reliable performance, low noise, and brightness of the surface of the polished object, and stable quality of the products, are the main features of this polisher.
- With its main mechanical properties and technical standards equal to or even well above peer products, this auto cookware sand blasting machine is regarded as the reasonable polishing equipment in metal ware industry.
PRODUCT FEATURES
1.Suitable for straight,curved and round shape products
2.High efficiency,low requirement for worker
3.Can polishing interior side and bottom in one machine
4.Energy saving &long lifetime for machine
APPLICATIONS
Apply to common models of kitchenware in the market, e.g, pressure cooker, inner pot, metal bowl, etc
Product specification
|
DESCRIPTION |
YM-HZSM-01 |
|
Function |
Inner & bottom sanding polishing |
|
Work piece size |
Dia≤φ160mm-300mm X High30mm-200mm |
|
Z axis (up and down axis)stroke |
300mm |
|
Y axis(left and right axis)stroke |
600mm |
|
X axis (front and rear axis)stroke |
400mm |
|
A axis(sand belt collection axis) |
±360 |
|
Fast moving speed |
160mm/s |
|
Working moving speed work |
20-30mm/s |
|
Return stroke moving speed |
160mm/s |
|
Servo motor power (Z/X/Y/A/B) |
1.5/1.5/1.5/4.5/0.75kw |
|
Rotary spindle maximum speed |
1440r/min |
